Configuring - Universal Calculation Analysis Rule
The Universal Calculation Analysis Rule is configured as part of a Sigmafine based model, a Model with elements built on the Sigmafine Element templates. To configure the analysis rule, follow the steps below using either the System Explorer or the Modeler.
Follow the steps under either System Explorer or Modeler.
In the Sigmafine Analysis navigation panel go to the Model for which you are creating the analysis.
Click the Analysis
menu button and select New from the menu, to open the Choose Analysis Template window.

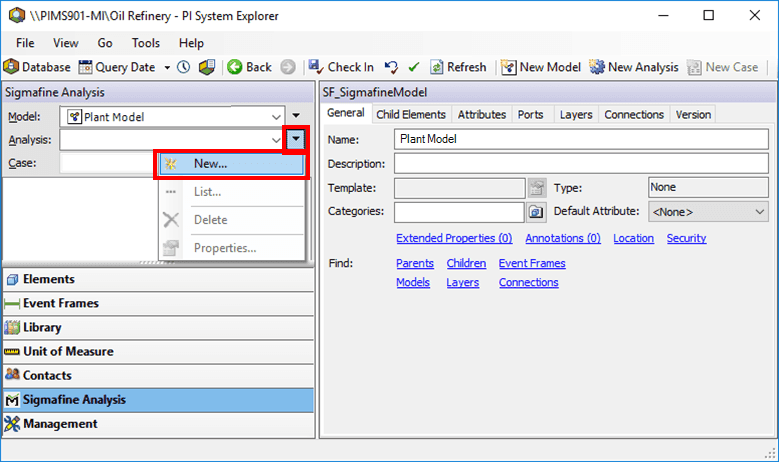

System Explorer- On the SF Analysis Toolbar, click the New Analysis button to open the Choose Analysis Template window.
The following steps are common to both System Explorer and ProcessBook (Modeler) configurations.
In the Choose Analysis Template window, \<None> is selected by default; this value is fine for what you need to do.
Click OK.

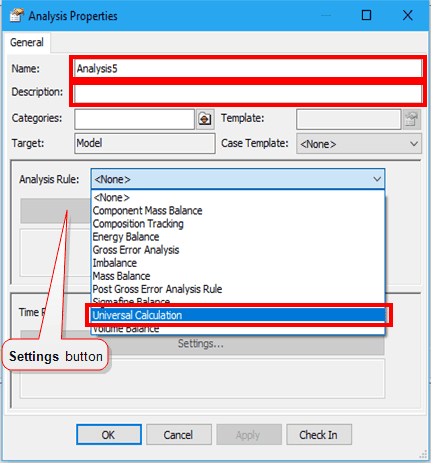

The Analysis Properties window opens.
In the Name box, type a name for the new analysis.
(Optional) In the Description box, type a short description of the analysis.
Click the Analysis Rule down-arrow and select Universal Calculation.
Under Analysis Rule, click the Settings button.

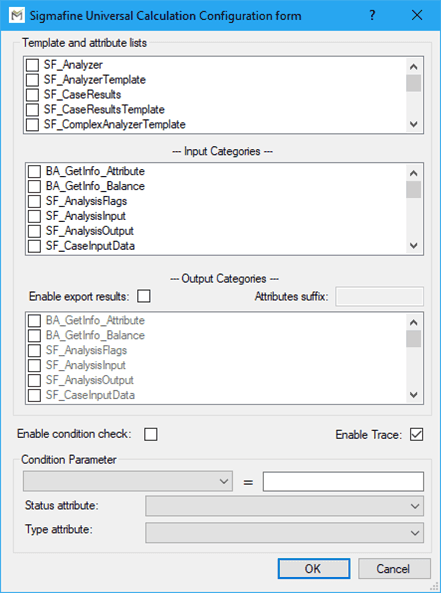

The Sigmafine Universal Calculation Configuration form window opens.
The table below provides a summary of the four tabs found in the Sigmafine Balance Configuration window.
Sigmafine Balance Configuration window - Tabs Summary
Use this feature... to configure these parameters Template and Attribute lists List of the templates to be activated Input Categories Selection of the Attributes that contain the input data for the analysis. Output Categories Selection of the Attributes that contain the output data for the analysis. Condition Parameters Selection of the condition checks Select the properties and options as described in the following \topics.
